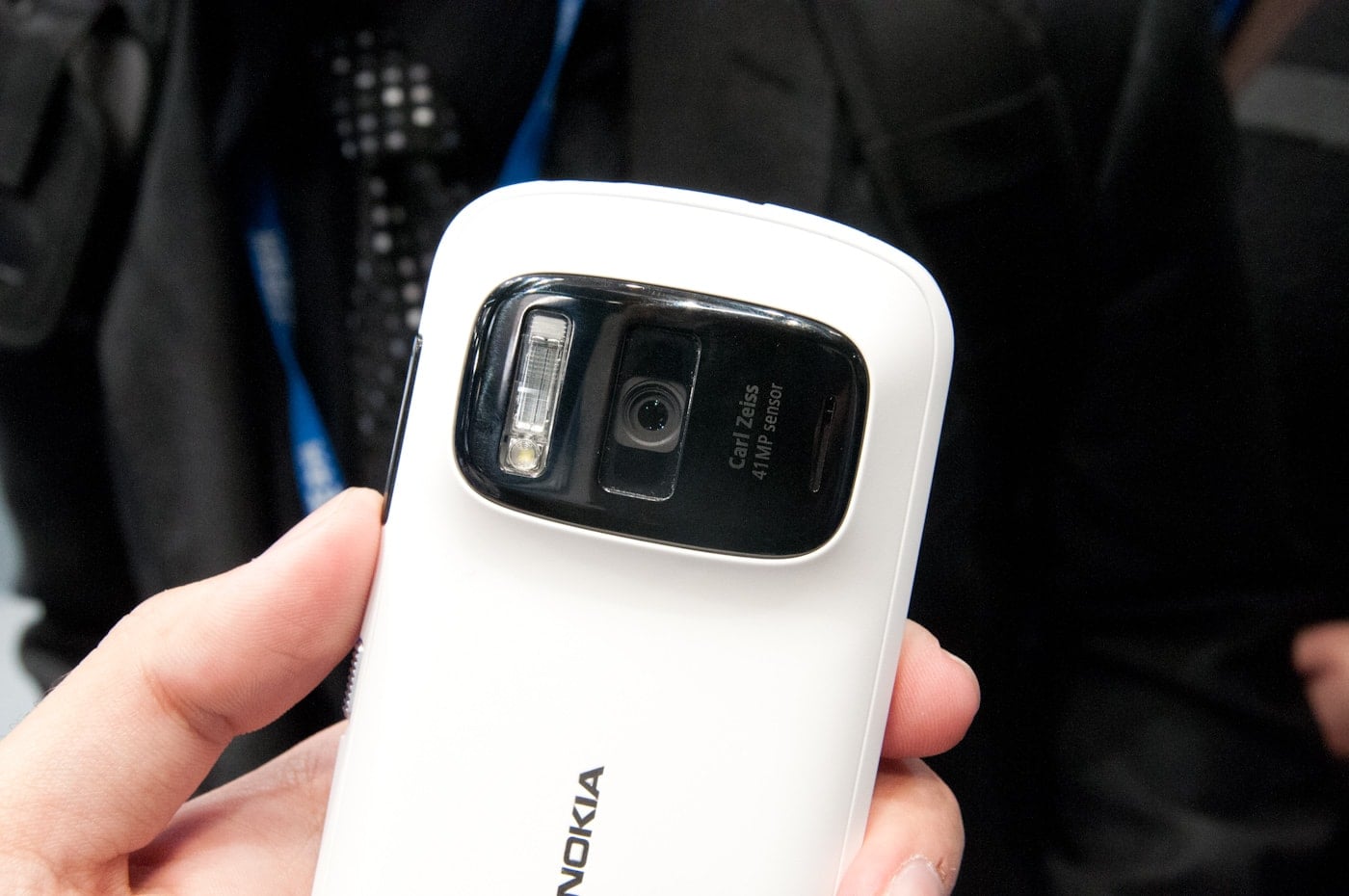

Nokia 808 PureView smartphone
Contents
Intro
The Nokia 808 PureView is a Symbian-powered smartphone first unveiled on 27 February 2012 at the Mobile World Congress. It is the first smartphone to feature Nokia’s PureView Pro technology, a pixel oversampling technique that reduces an image taken at full resolution into a lower resolution picture, thus achieving higher definition and light sensitivity, and enables lossless digital zoom. It was one of the most advanced camera phones at the time of its release in May 2012.
The Nokia 808 features a 41 MP 1/1.2 in (10.67 × 8 mm) sensor and a high-resolution f/2.4 Zeiss all-aspherical 1-group lens. The 808’s sensor was the largest (over 4 times larger than typical compact cameras) sensor ever to be used in a cameraphone at the time of its launch, a record previously held by Nokia’s N8 and, as of September 2014, by the Panasonic Lumix CM1. The resolution of the sensor remained the highest to be used in a cameraphone until January 2019, when the Honor View 20 was released with a 48 MP sensor.
Specs
| Technology | GSM / HSPA |
| CPU | 1.3 GHz Texas Instruments 4377622 ARM11 processor |
| GPU | Broadcom BCM2763 with OpenVG 1.1 and OpenGL ES 2.0 support |
| Display | 360 x 640 pixels, 16:9 ratio (~184 ppi density), AMOLED |
| Size | 123.9 x 60.2 x 13.9 mm, 95.5 cc |
| Battery | Removable Li-Ion 1400 mAh battery, 3.8V, model BV-4D |
| Camera | 41 MP (38 MP effective), f/2.4, 1/1.2", AF |
| RAM | 512Mb |
| Storage | 16Gb |
| Connectors | 3.5mm jack microUSB 2.0 OTG microHDMI Micro-SIM microSDHC |
| Networking | Wi-Fi 802.11 b/g/n, DLNA, UPnP technology Bluetooth 3.0, A2DP GPS, A-GPS NFC Stereo FM radio, RDS FM transmitter |
| Sensors | accelerometer, proximity, compass |
| Operating System | Symbian Belle FP2 |
Media
| Video recording | 1080p @ 30 fps 720p @ 30 fps 360p @ 30 fps, 4x lossless digital zoom |
| Front camera | VGA |
| Supported image formats | PNG, JPG, BMP, WBMP, GIF, MBM, OTA, TIFF |
| Supported sound formats | AAC, AMR, MID, MXMF, MP3, WAV, WMA |
| Supported video formats | 3GP, MP4, AVI, MKV, WMV |
| Speaker configuration | Ear speaker, mono loudspeaker |
| Synthesizer | MobileBAE, Lloyd Bank, 64 voices |
| FM radio | Stereo, external antenna |
| Extras | FM transmitter, Micro HDMI 1.4 out, stereo microphones, DLNA |
Accessories
- Nokia DC-15 - Car charger.
Links
Manuals
Software
- Nokia Suite v3.8 (last version, 100MB)
