Hoshi operating system

An operating system (OS) maps a model of computation, defined by its kernel interface, onto the underlying hardware. A simple and intuitive model of computation makes it easy for programmers to write applications. An efficient implementation of the mapping makes the applications run fast. Typical as interfaces for von Neumann hardware include processes (CPU), address spaces (memory), and I/O devices (I/O).

Hoshi 星 is an custom hobby operating system for the x86_64 platform. It’s not Linux but it is POSIX-compliant and runs on a custom kernel named Yukiko 幸子. It is written from scratch in C, including the kernel, boot-loader, standard library, GUI library and all major components.

It has a mode called HoshiMin (yes, I know) where it boots into console with minimal applications (but with network support active), minimal memory pressure (under 64MB used) no GUI window manager and kernel debugging dumped into the first serial port. ISO filesize is 12MB for HoshiMin, 38MB for full-GUI Hoshi and 358MB for Hoshi + binutils and gcc ports.

星 development started in 2015 and I am not looking for contributors. This page is still work-in-progress after so many years and it is definitely not updated with the latest changes in the tree.

Keep in mind that I have no intention of releasing the source code or an ISO, for now.

I’m developing 星 on a ~~Debian laptop~~ ~~openEuler VM under Windows 10 WSL~~ Debian arm64 virtual machine running on Parallels (macOS) and testing is done mainly on ~~QEMU~~ ~~Virtualbox~~ UTM. Editor is Sublime Text and sometimes I use JetBrains CLion. More info about the development setup here.

Akimitsu with dual Solarized themes (dark/light)

Requirements

x86_64 CPU.
64MB RAM (256MB for GUI).

Features

☑ boots from a MBR using a custom bootloader.
☑ has a Graphical User Interface with APIs.
☑ multithreading.
☑ has a network stack supporting IPv4 and IPv6, DNS, ICMP, TCP and UDP.
☑ custom filesystem named HOFS (Hoshi File System), ISO 9660 filesystem, FAT32.
☑ implements the POSIX API using a custom basic C library.
☑ the GNU toolchain (binutils and GCC can run native on Hoshi).
☑ can be compiled on a modern system using GCC 10.
☑ has an Internet Relay Chat (IRC) client.
☑ has an e-mail client with support for POP3 and SMTP.
☑ Universal Serial Bus (USB) EHCI support.
☐ Symmetric Multiprocessing (SMP).
☐ audio support and drivers.
☐ runs Doom and Quake.
☐ has a custom web browser.
☐ has Nyancat.

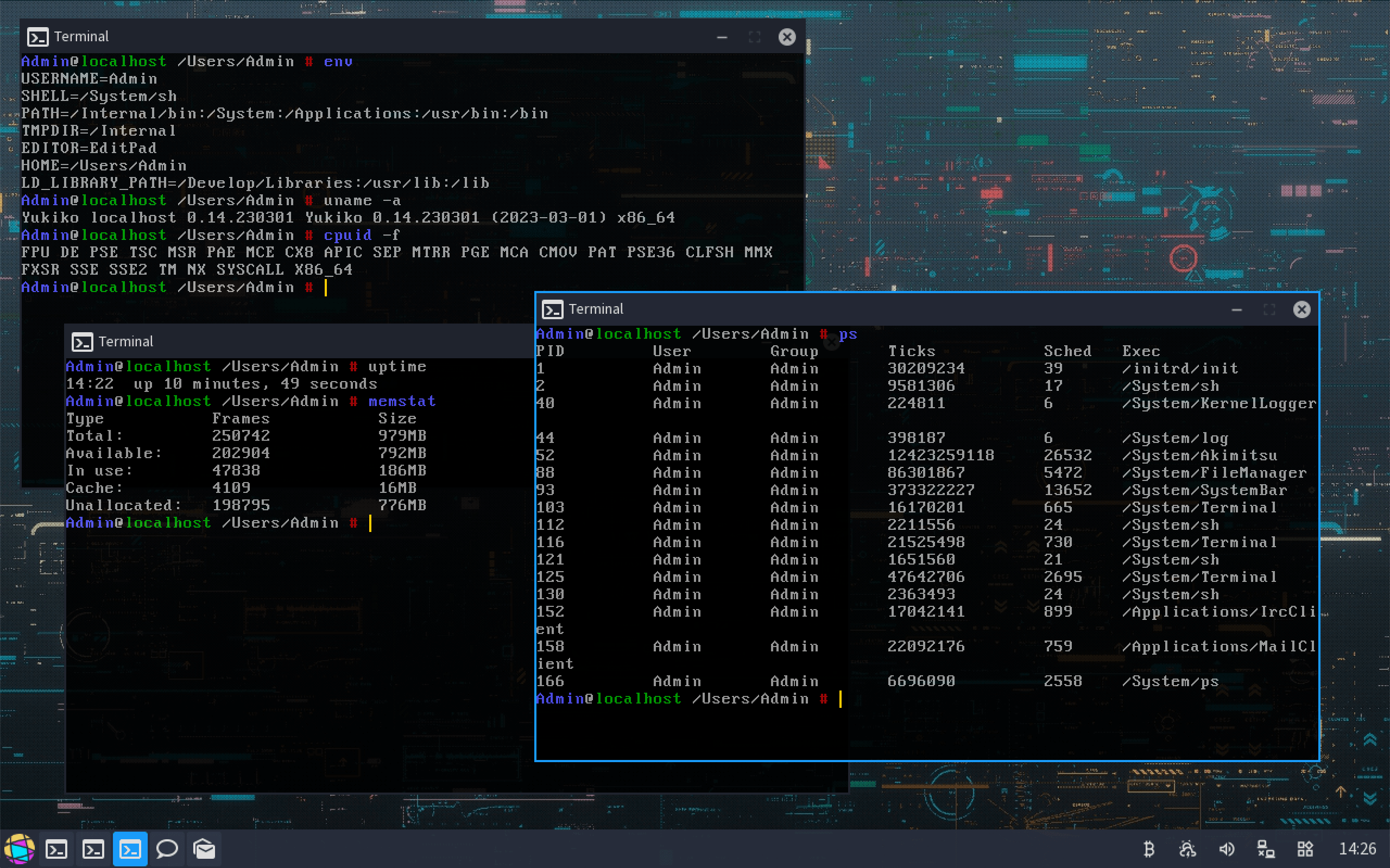

Multiple terminals running multiple coreutils programs

Hardware support

Graphics: BGA for now.
Input devices: PS/2 mouse and keyboard.
PCI, VGA text mode, APIC.
Storage devices: AHCI and IDE.
Ethernet cards: Intel PRO/1000 (82540EM or 82545EM), Novell NE2000 and AMD PCNet (Am79C970A or Am79C973).
Boots and runs on bare-metal and VirtualBox, QEMU, VMware, UTM (QEMU under the hood) or Parallels.

Akimitsu running GUI applications (image viewer, basic text editor, font viewer)

Ports

Applications

☑ Coreutils written from scratch.
☑ Text file editor.

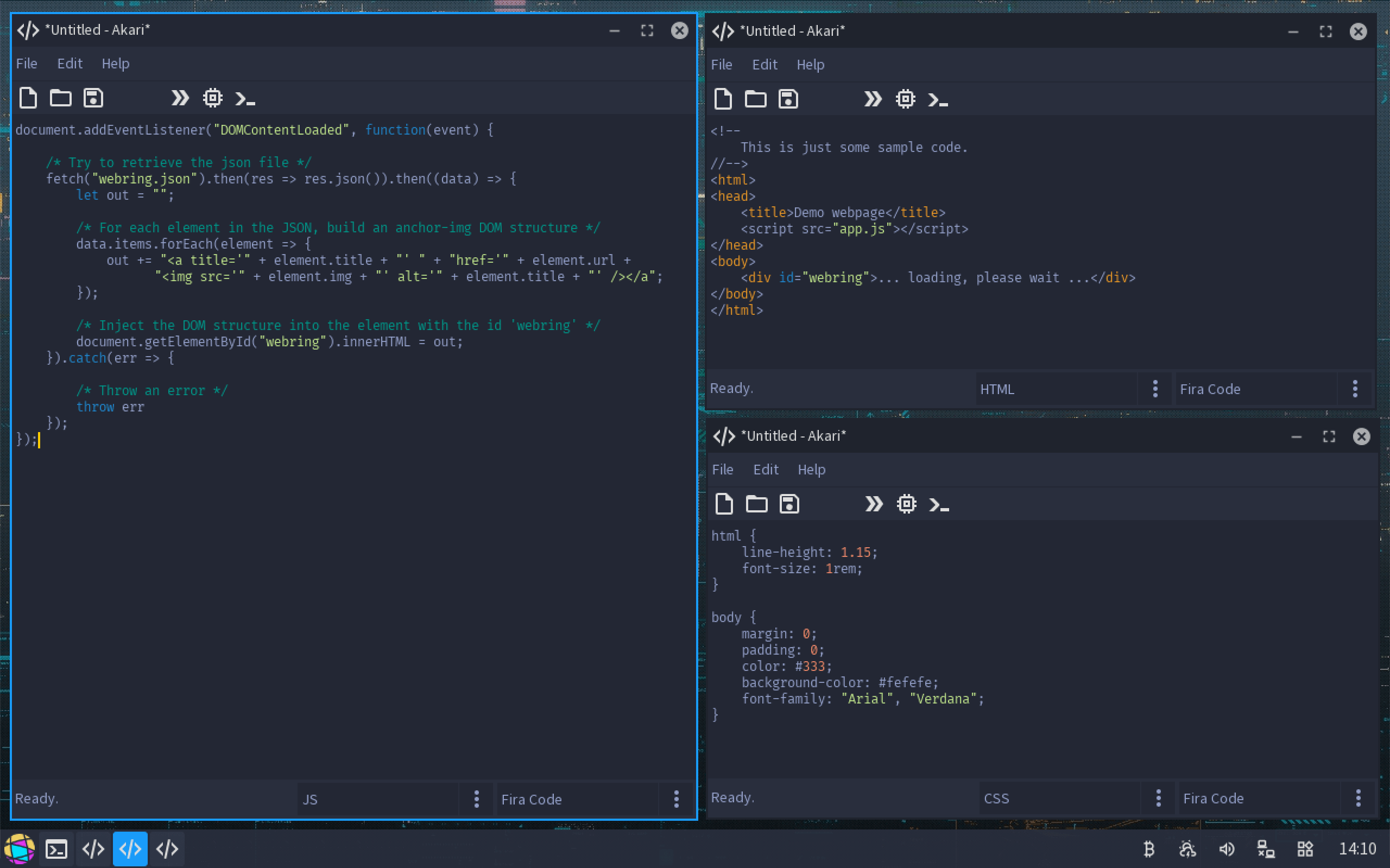

☑ Akari, the code editor with syntax highlighting.
☑ Daigo, Internet Relay Chat client.
☐ Painter, painting application.
☑ System Information.
☑ Kiyoko, the e-mail client with support for POP3 and SMTP.
☑ Process Manager.
☑ Terminal.
☑ Calculator.
☑ Font viewer.
☑ Image viewer with support for BMP, PNG and JPEG.
☐ Tetsuya, RSS reader.
☐ Notes, todo and contacts.

Servers

☑ echo
☐ httpd
☐ sshd
☐ ftpd

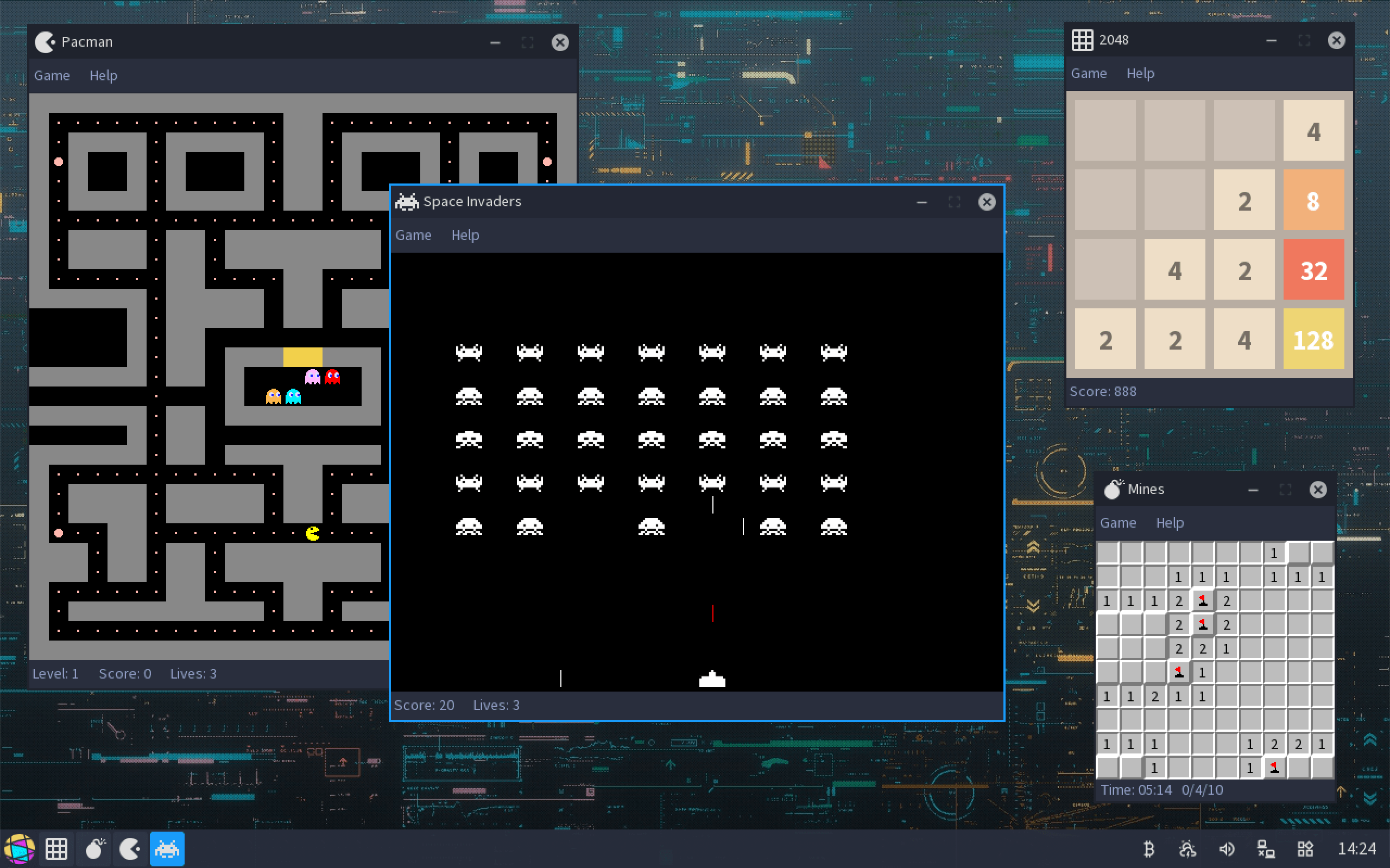

Games

☑ 2048
☑ Mines
☑ Tetris
☑ Breakout
☑ Space Invaders
☑ Pacman
☐ Doom
☐ Quake
☐ Memory

Components

Akimitsu

Akimitsu 昭光 is the GUI compositor and window manager.

Daigo

Daigo 大悟 is the Internet Relay Chat client application.

HoSH

HoSH is the simple (and basic) POSIX-compliant 星 shell.

Keiko

Keiko 恵子 is the network manager, responsable for loading the correct network card driver, initializing it and bootstrapping the whole network stack. Supports both IPv4 and IPv6, autoconfiguration can be done via DHCP or the configuration can be managed statically. Basic package filtering available too.

Kiyoko

Kiyoko 清子 is the e-mail client with support for POP3 and SMTP.

Masashi

Masashi 雅志 is the two-stage boot-loader.

Tetsuya

Tetsuya 哲也 is the RSS reader. It’s work in progress.

Yukiko

Yukiko 幸子 is the x86_64 monolithic kernel. It has multiple subsystems, ACPI management, video framebuffer, virtual filesystems and virtual devices, support for APIC, DMA, IDT, PCI, terminals (kernel and pseudo), threads (mutexes, semaphores, signals, preemptive scheduler), networking (Ethernet, ICMP, raw, Unix, TCP/IP and UDP sockets).

Libraries

libc - C library.
libgui - implements the GUI controls for Akimitsu (video compositor).
libhoshi - helper library with support for Bitmaps, JSON parsing, basic crypto, IRC, POP3, SMTP, XML parsing.

Akimitsu GUI controls

Buttons
Check boxes
Combo boxes
Data
Images
Menus
Progress bars
Radio boxes
Scroll bars
Tabs
Text fields
Toolbars

Syscalls

Below is the full list of 星 syscalls:

exit
write
pwrite
read
pread
open
close
ioctl
lseek
raise
stat
lstat
pause
fstat
chmod
fchmod
fsync
chown
fchown
mkdir
ftruncate
unlink
rmdir
dup
dup2
dup3
insmod
chdir
getcwd
mmap
munmap
rmmod
link
symlink
readlink
sleep
utime
umask
shutdown
uname
sigwait
sigsuspend
mcast
fpoll
oxperm
dxperm
fchxperm
chxperm
haveperm
sync
nice
procstat
cpuno
kill
time
nanotime
down
routetable
systat
statvfs
fstatvfs
chroot
modstat
mv
pathctlat
pathctl
flock_set
flock_get
fcntl_setfl
fcntl_getfl
fcntl_getfd
fcntl_setfd
bindif
block_on
unblock
unique
alarm
exec
sigaction
sigprocmask
getparsz
getpars
fsbase
gsbase
mprotect
fork
waitpid
yield
realpath
seterrnoptr
geterrnoptr
unmount
send
recv
getgroups
setgroups
getpid
getuid
geteuid
getsuid
getgid
getegid
getsgid
getppid
setsid
setpgid
getsid
getpgid
setuid
setgid
setreuid
setregid
seteuid
setegid
pthread_create
pthread_self
pthread_join
pthread_detach
pthread_kill
pthread_exit
aclput
aclclear
getdent
socket
bind
sendto
recvfrom
getsockname
listen
connect
getpeername
accept
accept4
setsockopt
getsockopt
sockerr

Statistics

The Python, C++, HTML, CSS, JavaScript and JSON files are just demos for Akari and not part of the 星 source code.

$ cloc src --quiet
-------------------------------------------------------------------------------
Language                     files          blank        comment           code
-------------------------------------------------------------------------------
C                              728          35559          50874         143889
C/C++ Header                   272           9256          21993          26385
Assembly                        34            403            270           1964
make                            53            319             22           1166
Bourne Shell                    24            167             69            915
CSS                              2            166            129            680
Markdown                         1             38              0             85
JSON                             1              0              0             43
JavaScript                       2              2              1             35
HTML                             3              0              0             33
C++                              1              2              6              5
Python                           1              1              0              2
-------------------------------------------------------------------------------
SUM:                          1122          45913          73364         175202
-------------------------------------------------------------------------------

Out of which Yukiko (the kernel) has:

$ cloc kernel --quiet
-------------------------------------------------------------------------------
Language                     files          blank        comment           code
-------------------------------------------------------------------------------
C                              226          20722          41571          67678
C/C++ Header                   127           6401          14210          18283
Assembly                        17            217            147           1089
make                             1              9              0             24
Bourne Shell                     1              2              0              8
-------------------------------------------------------------------------------
SUM:                           372          27351          55928          87082
-------------------------------------------------------------------------------

Building

If you happen to run into the source-code “by mistake”, build 星 by installing dependencies first:

openEuler:

$ sudo dnf install wget patch gcc binutils genisoimage zlib-devel texinfo nasm autoconf flex bison g++ libmpc libmpc-devel gmp gmp-devel mpfr mpfr-devel isl isl-devel

Debian:

$ sudo apt install wget patch gcc binutils genisoimage libz-dev texinfo nasm autoconf flex bison

Suppose that you want to build a live ISO yourself, to start, create a working directory next to the src directory, named build and cd inside.

$ mkdir build && cd build
$ ../src/setup.sh --sysroot=/sysroot --iso

or if you’re building HoshiMin:

$ mkdir build-min && cd build-min
$ ../src/setup.sh --sysroot=/sysroot --min

To get the ISO, run make:

$ make

If everything went well, you should now have a file called hoshi.iso. Congratulations, you can now boot it!

Hoshifetch displaying system information

星 tips & tricks

Starting and stopping Keiko is just a matter of typing those commands at the HoSH prompt:

$ net_up

or:

$ net_down

Keiko will attempt to autoconfigure IPv4 networking using DHCP by default. If you want to enable IPv6, open /Config/Interfaces.conf and add this line:

interface eth0 ipv6 dhcp

Display or change the network configuration by using the net_conf utility.
There is a basic coreutils package so you’ll find most of the tools you’re used to, like cat, cp, date, dd, du, echo, etc.
Development headers are installed in /Develop/Headers.
While there is a POSIX layer, 星 is not Linux. Device filesystem is /Devices instead of /dev/, proc filesystem is /Processes instead of /proc, applications are split between /Applications and /System depending on the ACLs. For compatibility reasons there is a /usr directory and system libraries are installed into /usr/lib but this will change in future revisions to /Develop/Libraries.
Most of the GUI customization stuff (wallpapers, cursors, icons, themes) can be found inside /Data/System directory.
/bin exists only so that shell scripts that use /bin/sh or /bin/bash can find the Hoshi shell.

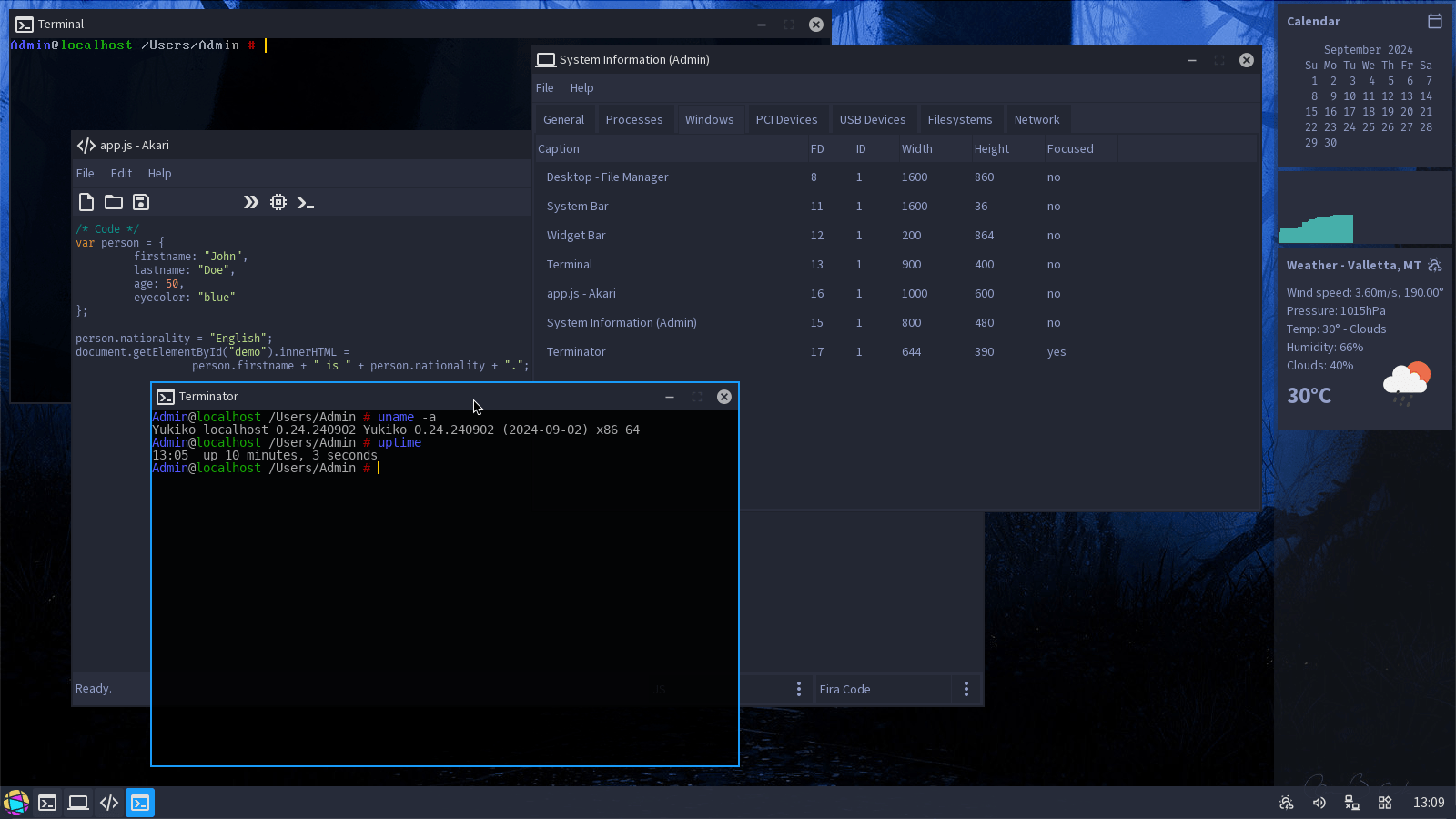

Widgets bar, system information with windows list, terminals

Directory structure

Live ISO directory structure

This is the basic 星 live ISO directory structure, keep in mind that things get added depending on the applications that get built and installed. Lowercase directories are added for compatibility reasons.

|-- Applications
|-- bin
|-- boot
|-- Config
|   |-- Init
|   `-- Services
|
|-- Data
|   |-- AppIcons
|   |-- Applications
|   |-- Demos
|   |   `-- Images
|   |-- Docs
|   `-- System
|       |-- Cursors
|       |-- Fonts
|       |-- Icons
|       |-- Images
|       |-- mime
|       |-- Themes
|       `-- Wallpapers
|
|-- Develop
|   |-- Demos
|   |-- Headers
|   |-- Libraries
|   `-- Source
|
|-- Devices
|-- initrd
|-- Internal
|   |-- Keiko
|   `-- Logs
|
|-- lib
|-- lib32
|-- Processes
|-- System
|-- Users
|   `-- Admin
|       |-- Desktop
|       |-- Documents
|       |-- Downloads
|       |-- Pictures
|       `-- Projects
|
|-- usr
`-- Volumes

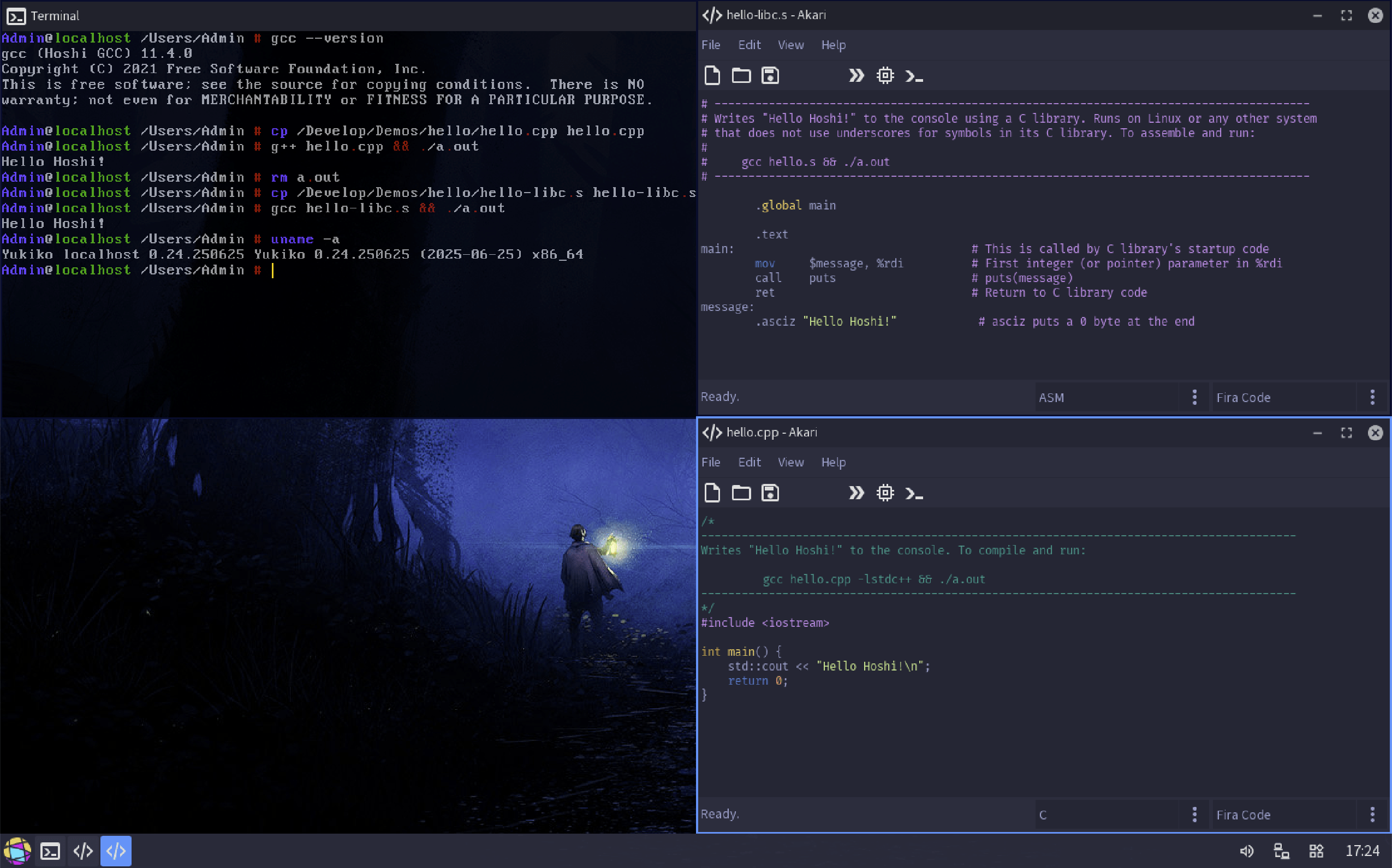

Using gcc to compile c++ and assembler source code

Source directory structure

This is the basic 星 source directory structure, keep in mind that things get added depending on the applications that get built and installed.

|-- build
|-- ports
|   |-- binutils
|   |-- freetype
|   |-- gcc
|   |-- libjpeg
|   |-- libpng
|   `-- libz
|
|-- src
|   |-- applications
|   |-- base
|   |-- base-min
|   |-- boot
|   |-- coreutils
|   |-- drivers
|   |-- init
|   |-- installer
|   |-- kernel
|   |-- libc
|   |-- libraries
|   |   |-- libgui
|   |   `-- libhoshi
|   |
|   |-- manual
|   |-- modules
|   |   |-- ac97
|   |   |-- ahci
|   |   |-- e1k
|   |   |-- fatfs
|   |   |-- hofs
|   |   |-- ide
|   |   |-- isofs
|   |   |-- ne2k
|   |   |-- pcnet
|   |   |-- ps2kbd
|   |   |-- serial
|   |   `-- vbox
|   |
|   `-- tools
|
|-- sysroot
|-- temp
`-- vm
    |-- bochs
    |-- qemu
    |-- utm
    `-- vbox

permalink http://sizeof.cat/project/hoshi/

created April 22, 2016

updated June 25, 2025

words 1810

tags #hoshi, #projects, #operating system, #osdev
